E Ink Image Optimization: How to Prepare Photos, Artwork, and Text for a Phone Case

E Ink image optimization is less about making a picture look vivid on a conventional phone screen and more about keeping its subject clear on a static, limited-colour display. The most reliable approach is to choose a simple image, crop it for the selected case, strengthen light and dark separation, and review a grayscale version before transferring it.

Why E Ink image optimization is different

An E Ink phone case shows a selected static image rather than behaving like your phone's bright, animated display. The image can remain visible without continuous power, but changing it still requires the case-specific NFC transfer process and relevant instructions.

That difference changes how you edit. A photograph that depends on subtle shadows, delicate colour differences, or fine background detail may become muddy when simplified. A clean illustration, strongly lit portrait, bold pattern, or short high-contrast message is more likely to remain recognizable.

For a broader comparison of E Ink and conventional phone cases, see this guide to the static E Ink display. The key point is to optimize for clarity, not a full-colour, animated-screen effect.

Choose an image that can survive simplification

Start with the image itself. Ask whether someone could identify the subject from a small preview with the colour and fine detail reduced. If not, editing alone may not solve the problem. Select a clearer image or simplify the design before transferring it.

Shop Tapeink's product guidance notes that E Ink has a limited colour range and recommends bold, high-contrast photos, artwork, and text. This is useful general guidance, but the exact display specification may differ between cases.

Crop and compose for the case display

Before adjusting colour or contrast, create a version suited to the display area. Find the focal point, then remove background elements that do not support it. One face, pet, object, symbol, or short message is usually easier to read than a crowded scene with several competing subjects.

Keep important details away from the outer edges. A face, logo, or line of text positioned too close to the boundary can feel cramped or lose visual weight when the image is fitted to the case. Leave enough surrounding space for balance.

Check the shape shown by the product listing. Do not assume every E Ink case uses the same display area, aspect ratio, or pixel dimensions. Exact specifications were not confirmed across the range, so follow the instructions for the specific case rather than applying a universal template.

Make a small preview at approximately the size you expect to see on the case. If the subject is difficult to identify, enlarge it, simplify the composition, or choose another image.

Improve contrast, brightness, and tonal separation

Contrast is the difference between light and dark areas. Tonal separation is the ability to distinguish nearby shades, such as a grey shirt against a grey wall. Both matter because many similar midtones can appear flat or muddy on a limited display.

Separate the subject from its background

If the subject and background have similar brightness, adjust one of them or replace the background. A dark subject against a lighter background, or a light subject against a darker one, generally creates a clearer visual hierarchy.

Increase contrast carefully. Excessive adjustment can remove useful detail from hair, clothing, clouds, or shadows. The goal is not to make everything pure black or white. It is to keep important shapes distinct.

Check brightness and midtones

A faint image may need more separation between its main light and dark areas. A harsh image may need less contrast so the subject retains internal detail. Compare the edit with the original and judge whether the subject is easier to recognize, not whether the preview looks more dramatic.

Bold, high-contrast images are generally better suited to this type of display than subtle photographs. The final result still depends on the selected case and transfer process.

Use grayscale and limited colour deliberately

Colour can make an image look rich on a phone screen while adding little useful separation on E Ink. Two different colours may become similar in brightness, causing adjacent areas to blend. Converting a copy to grayscale reveals whether the composition works without relying on colour alone.

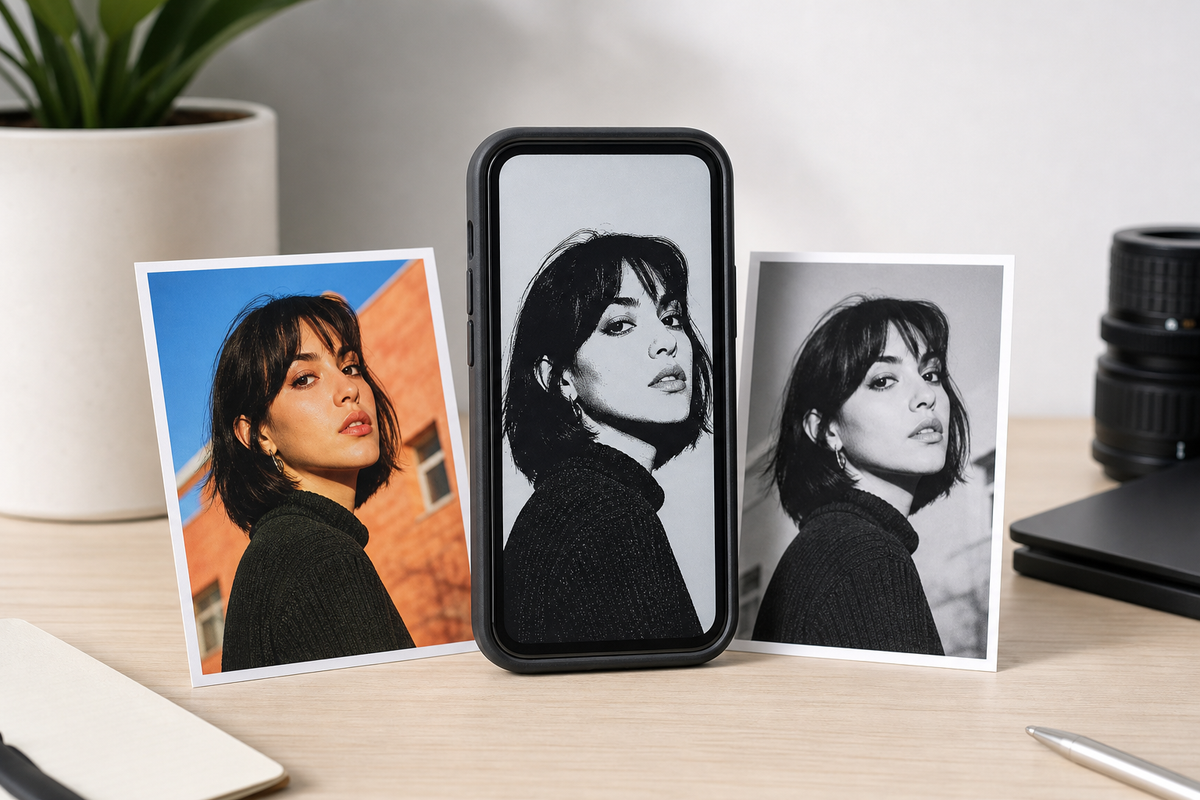

Compare the original, a grayscale version, and a simplified colour version if your editing tool supports one. Keep the version in which the subject, edges, and text are easiest to distinguish. This does not mean every image must be monochrome. Colour should support the structure rather than carry all its meaning.

Set realistic expectations. An E Ink phone case produces a static, paper-like interpretation, not the same full-colour, animated result as your phone screen. Do not edit to an assumed palette unless the selected listing or instructions specify it.

Should you use dithering?

Dithering uses a pattern of small light and dark marks to suggest an intermediate tone when the display cannot reproduce it directly. It can help a gradient, shaded portrait, or soft illustration retain some tonal variation after colour or grayscale reduction.

Dithering is optional, not a requirement for every E Ink phone case image. It may introduce visible texture, especially in faces, smooth backgrounds, or small text areas. Compare a non-dithered version with a lightly dithered version at the approximate display size.

Keep dithering only when it makes the subject easier to understand. If the result looks noisy or less legible, return to a simpler image with stronger tonal separation.

Pre-transfer checklist for an NFC E Ink case

1. Confirm the phone model. Select the exact iPhone or Samsung model and variant shown on the listing.
2. Check the display shape. Frame the image for the actual display area rather than another case.
3. Review the composition. Keep the focal subject, logo, or text away from the edges.
4. Test contrast. Check whether the subject separates clearly from its background, including in grayscale.
5. Decide on dithering. Use it only if it improves intermediate tones without adding distracting texture.
6. Read the case instructions. Confirm the supported app, file requirements, and transfer steps. These details are not universal.
7. Transfer through NFC as directed. Follow the positioning and app instructions for the selected case.
8. Review the result. Inspect the transferred image in normal lighting and assess clarity, contrast, and framing.

For final setup guidance, review the NFC image transfer instructions for the exact product. App flows may differ between phones, operating systems, and case variants.

What to do when the image looks wrong

The image looks muddy

Reduce competing detail and strengthen the difference between the subject and background. A grayscale test can show whether several colours are collapsing into similar tones.

The subject looks too faint

Check brightness and contrast, then view the image at a small size. A pale subject against a pale background may need a darker background, stronger outlines, or a different source image.

The design looks too busy

Remove secondary objects, crop closer, or reduce colours and textures. E Ink is more forgiving of one memorable subject than a crowded composition.

The focal point is cropped

Create a new crop with more space around the important feature. Check the display shape and keep key details away from the boundaries.

Dithering makes the result noisy

Use a non-dithered version or apply a lighter treatment. Dithering should support tonal transitions, not cover the subject in texture.

Frequently asked questions

What kind of photos look best on an E Ink phone case?

Photos with one clear subject, strong light-dark separation, and limited background detail are usually easiest to interpret. Portraits, pets, bold objects, and simple scenes are good starting points.

Can an E Ink phone case display full-colour photos?

Do not expect the same bright, animated result as your phone screen. Product guidance describes a static display with a limited colour range, so clear shapes and tonal separation matter more than subtle colour accuracy.

Do I need to resize an image before transferring it?

Prepare the crop and proportions for the selected case, but confirm exact pixel dimensions and file requirements in that case's instructions. No single universal specification was confirmed for every case.

Is dithering required?

No. It is an optional technique for representing intermediate tones. Keep it only when it improves clarity without adding distracting texture.

Why does my transferred image look faint or muddy?

The image may contain too many similar midtones, insufficient contrast, or more detail than the display can represent. Try a tighter crop, stronger tonal separation, a simpler background, or a grayscale version.

Conclusion: Optimize for clarity, not screen-like detail

The best E Ink image is usually simple, well-framed, and easy to read at a glance. Choose a strong subject, crop it for the selected case, improve contrast without destroying detail, and test grayscale or limited colour before considering dithering.

Confirm the exact model, display shape, supported instructions, app process, and any required dimensions or file specifications before transferring an image through NFC.
